| Type (Kind) | 4 Leg Angular Lattice Tower |
|---|---|
| Height | 40 Meters (Customizable from 5m to 100m) |
| Surface Treatment | Hot-dip Galvanization (min 85μm) according to ISO 1461 |
| Hoisting Method | Crane Hoisting / Manual Sectional Assembly |
| Material | High Strength Q235B / Q345B / ASTM A572 Steel |
| Application | Telecommunication, Microwave, GSM, Radio & Broadcast |
| Product Name | 4 Leg Angular Steel Lattice Communication Tower |
| Column Connection Method | Flange Connection or Splice Bolt Connection |
Product Introduction
Engineering intelligence builds better towers. CLEVERTOWER® delivers safe, reliable, and cost-efficient tower solutions through proven engineering experience and rational structural design.
CT-T-40-L-06F01
Professional Hot Dip Galvanized 4 Leg Angular Lattice Steel 40 Meter Tower for Telecommunication Cell Tower Antennas
Product Details
| Tower Type | 4 Leg Angular Lattice Tower |
| Material | Q235B/Q345B High Strength Structural Steel |
| Column Connection Method | Flange Connection or Splice Bolt Connection |
| Safety & Reliability | Wind Load Resistance up to 160km/h and Seismic Grade 8 |
| Service Life | Minimum 50 Years with Maintenance-free Coating |
| Design Standard | TIA/EIA-222-G / GB/T 2694 Standards |
| Platform Configuration | Internal Maintenance Platform with Safety Handrails |
| Ladder System | Integrated Climbing Ladder with Fall Arrest Rail or Safety Cage |
| Accessories Included | Antenna Brackets, Feeder Brackets, Lightning Rod, Grounding Kit |
| Quality Certification | ISO 9001:2015 / CE / SGS Certified Manufacturing |

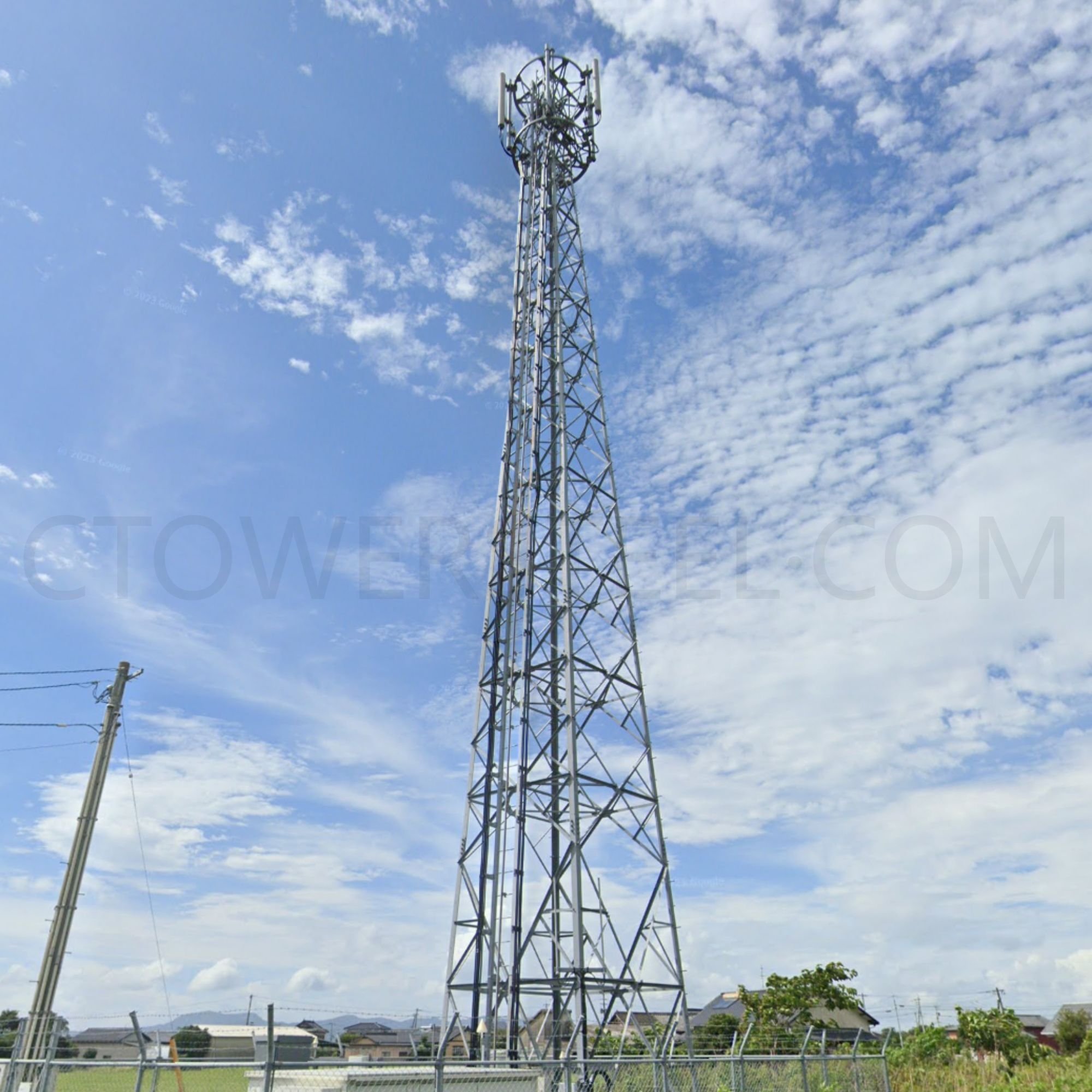

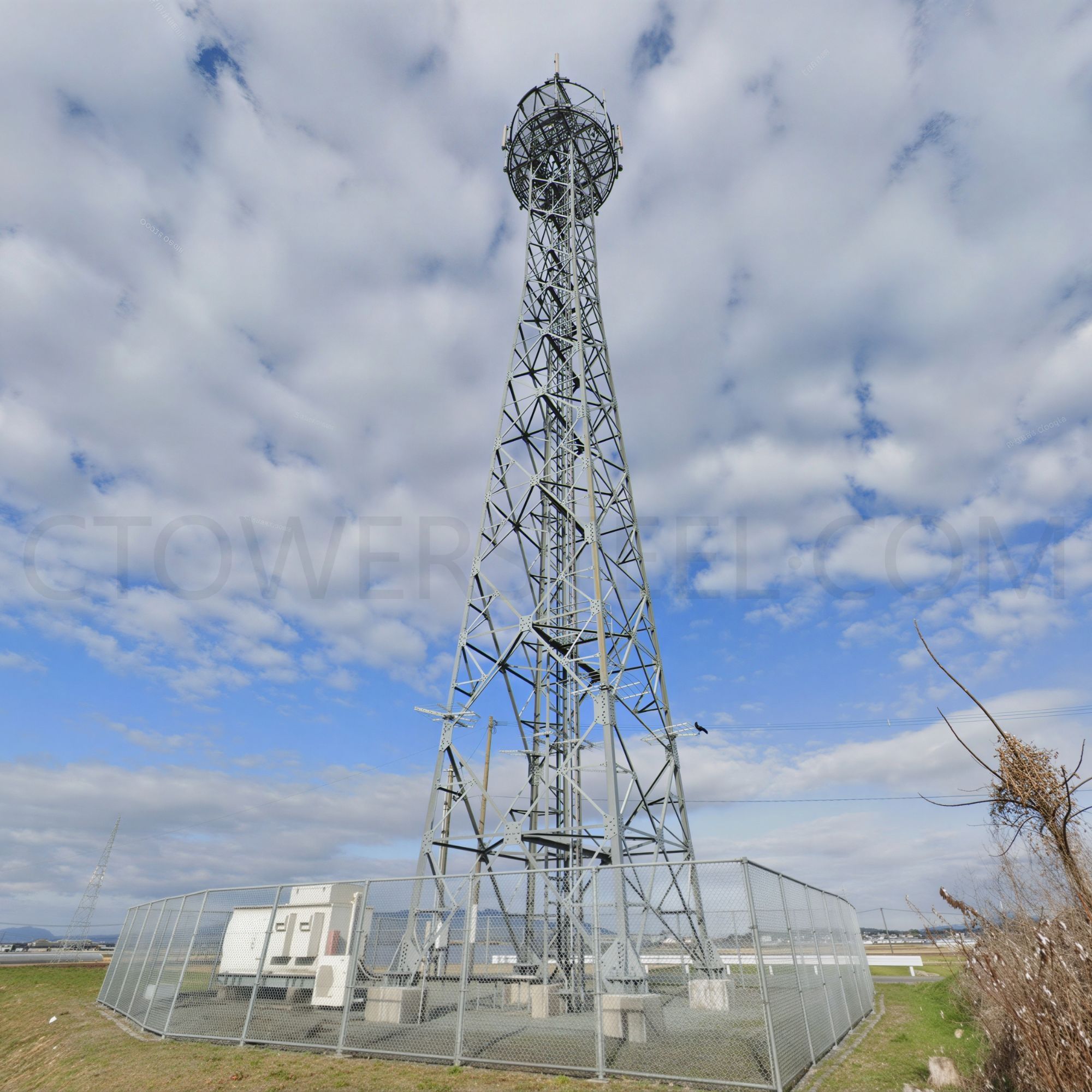

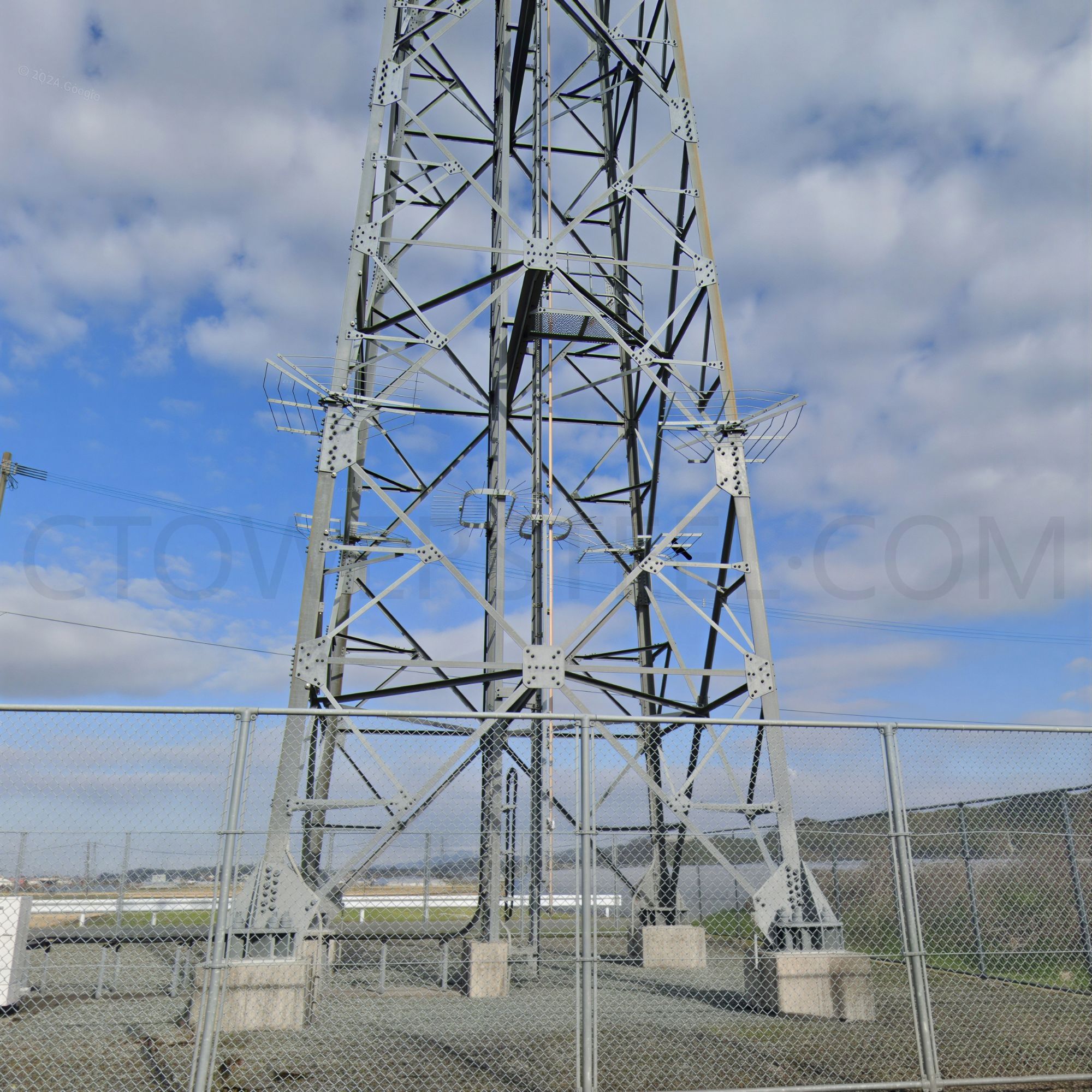

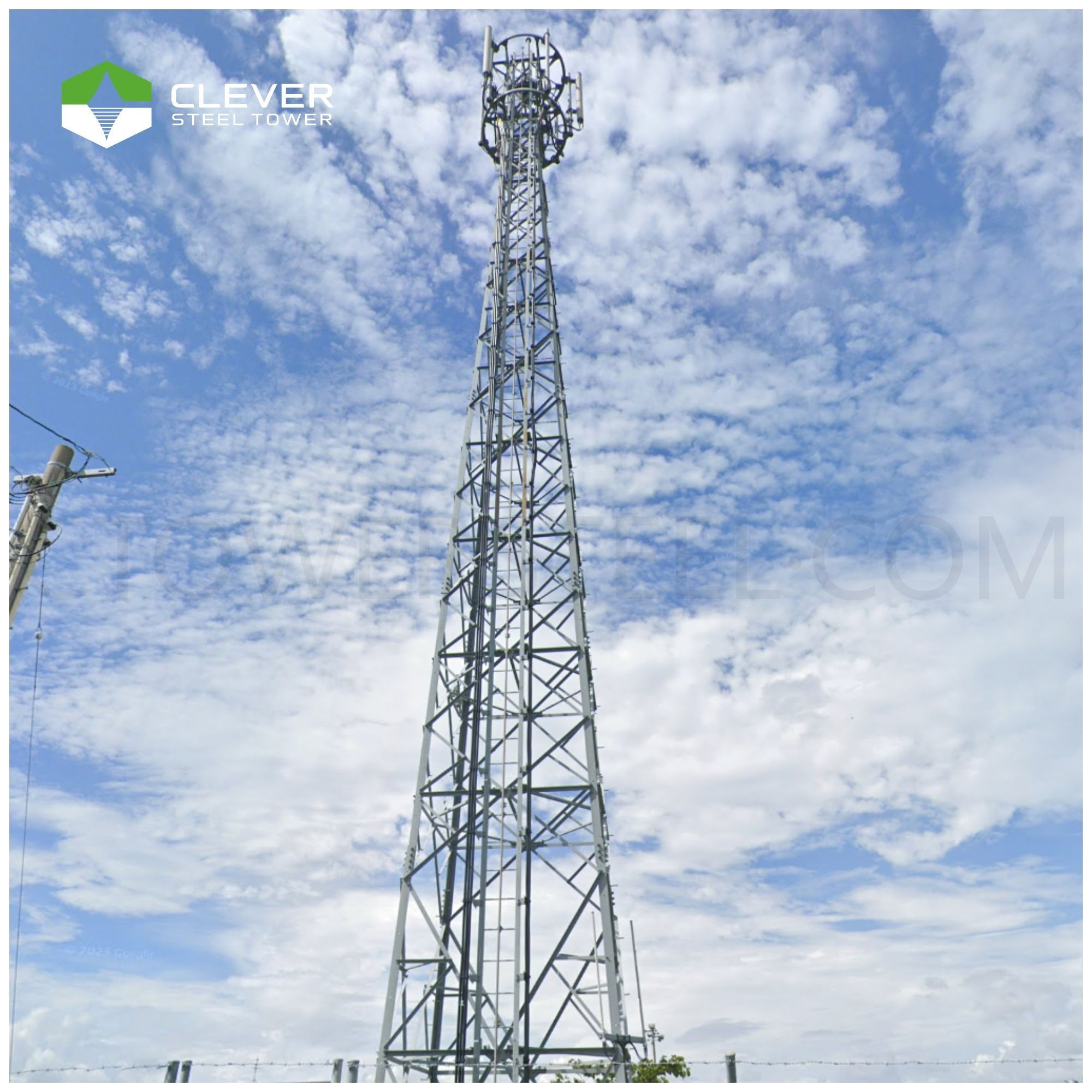

Robust 4 Leg Angular Lattice Structure for Superior Stability
Our 40 meter tower features a precision-engineered 4-leg angular lattice design that distributes structural loads evenly across all four corners. This configuration provides exceptional resistance to wind loads up to 160km/h and seismic activity up to Grade 8, ensuring reliable operation in harsh environmental conditions. The triangulated web members maximize structural integrity while minimizing material usage, making it an economical choice for telecom infrastructure projects worldwide.
Hot-Dip Galvanized Protection for Long-Term Durability
Each steel component undergoes comprehensive hot-dip galvanization treatment with a minimum coating thickness of 85μm according to ISO 1461 standards. This industrial-grade corrosion protection creates a metallurgical bond that resists rust, weathering, and chemical exposure for over 50 years without maintenance. The zinc coating self-sacrifices to protect the underlying steel, even in coastal or industrial environments with high humidity and salt exposure.

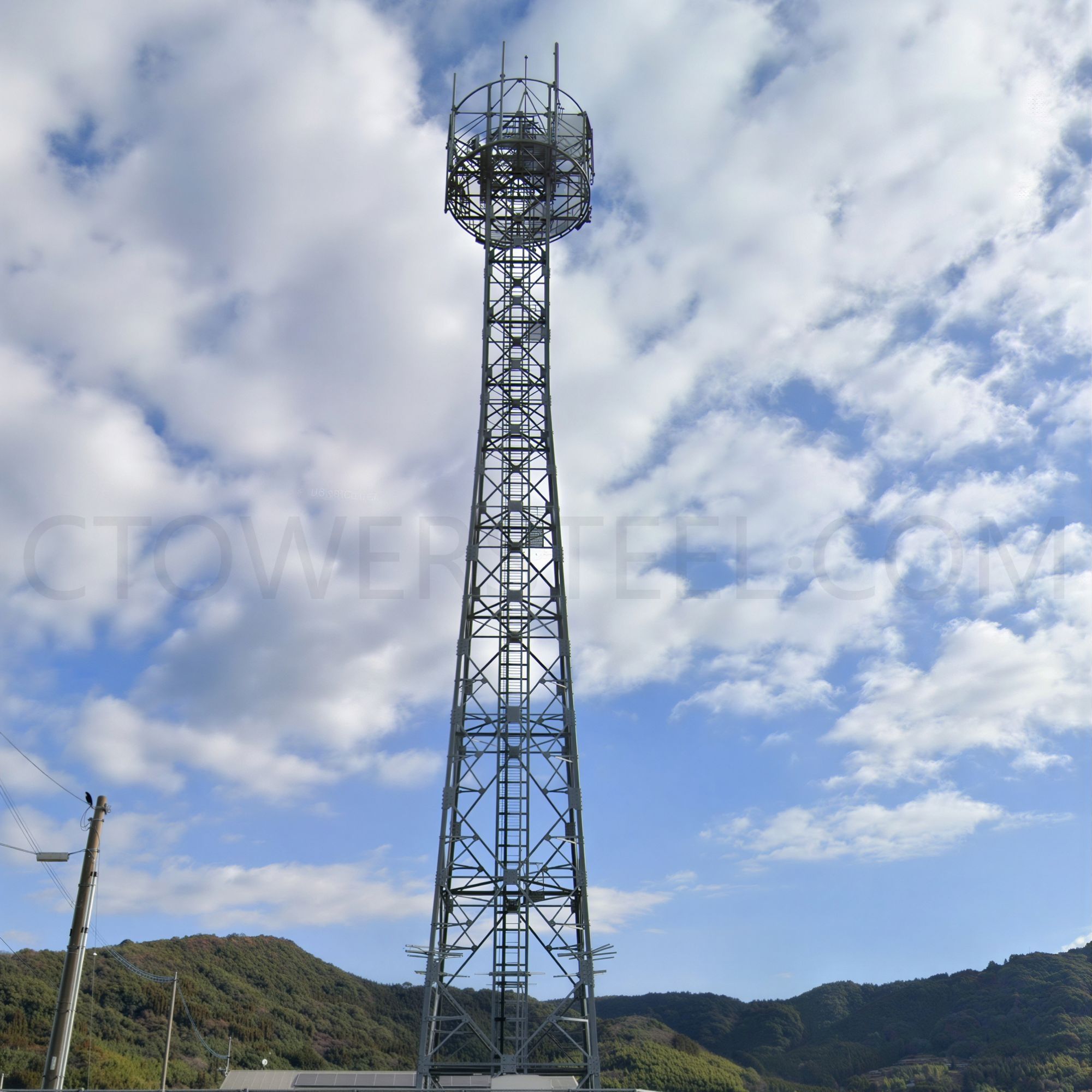

Modular Sectional Design for Easy Installation
The tower is manufactured in factory-controlled sections with pre-drilled bolt holes and numbered components for streamlined on-site assembly. Each module fits precisely with flange connections, reducing installation time and labor costs. Standard 20ft or 40ft container optimization allows for efficient logistics and shipping worldwide. Complete with integrated climbing ladder, safety cage, and maintenance platform for convenient equipment access and servicing.

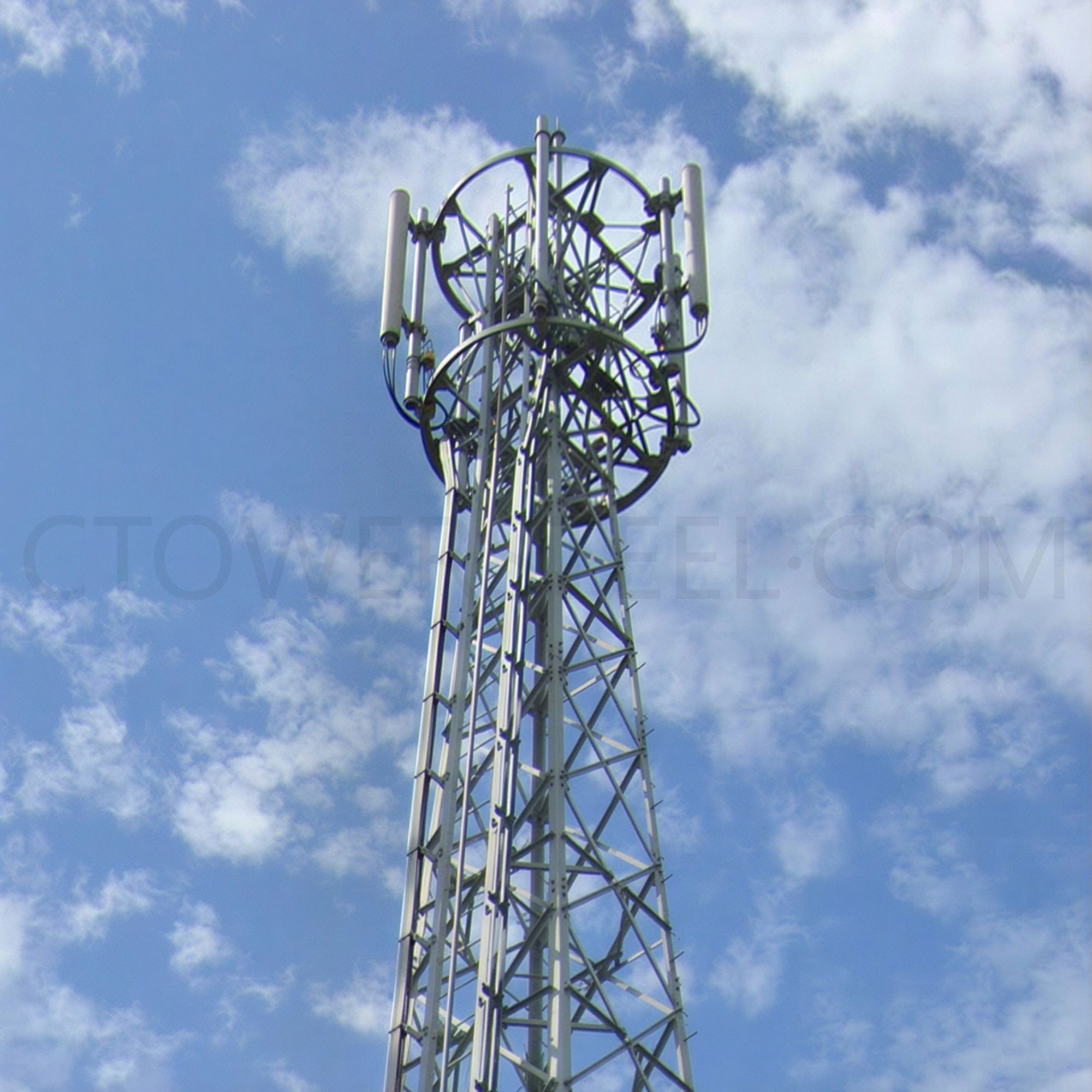

Versatile Application for Multiple Communication Systems
Designed to support GSM, CDMA, LTE, 5G, microwave, and broadcast communication antennas simultaneously. The tower accommodates multiple antenna placements with configurable bracket arrays for coaxial feeders, waveguides, and lighting systems. Includes pre-installed mounting points for microwave dishes, rectenna systems, and auxiliary equipment. Ideal for cellular base stations, rural connectivity, emergency communication, and broadcasting infrastructure.
Certified Quality Manufacturing with Global Standards Compliance
Production facility certified under ISO 9001:2015 quality management system, with all towers designed per TIA/EIA-222-G and GB/T 2694 standards. Every tower undergoes rigorous dimensional inspection, material testing, and load-bearing verification before shipment. Available with CE marking and SGS certification for export to European and international markets. Full technical documentation, installation drawings, and engineering calculations provided with each order.
