| Type (Kind) | Power Transmission Monopole Tower |
|---|---|
| Height | 30 Meters (Customizable 10m – 60m) |
| Surface Treatment | Hot Dip Galvanizing (Standard: ISO 1461 / ASTM A123) |
| Hoisting Method | Crane Hoisting / Segmented Assembly |
| Material | Q345B / Q355B / Q420B / Q460 High Strength Steel |
Product Introduction
Engineering intelligence builds better towers. CLEVERTOWER® delivers safe, reliable, and cost-efficient tower solutions through proven engineering experience and rational structural design.
CT-P-30-M-05F01

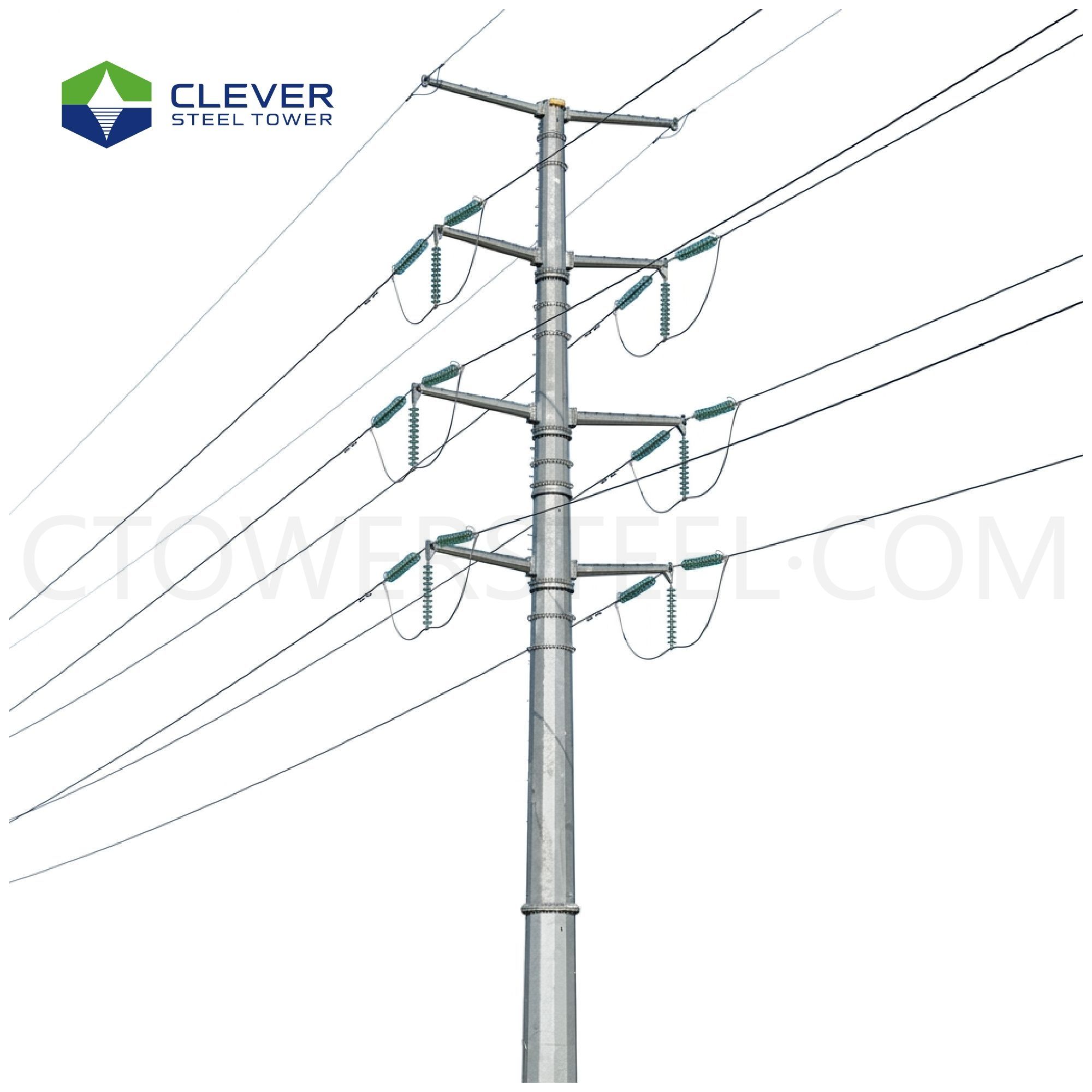

Hot Dip Galvanized Transmission Line Tubular Support Structure Electric Power Steel Monopole Tower for Power Utility
Product Details
| Attribute Name | Specification Details |
|---|---|
| Tower Type | Monopole / Single Pole Tapered Structure |
| Material | High-strength low-alloy structural steel (ASTM A572 or equivalent) |
| Column Connection Method | Slip-joint (Overlap) or Flange Connection |
| Safety & Reliability | Wind load resistance (up to 160km/h) and seismic grade 8+ |
| Design Standards | GB/T 2694, AISC, ASCE 48-05, or TIA/EIA-222 |
| Shape Configuration | Polygonal (12-sided / 16-sided) or Round Conical |
| Welding Certification | AWS D1.1 / CO2 Shielded Arc Welding |
| Application Environment | Urban power grids, narrow corridors, and mountainous terrain |
| Design Life | Minimum 30–50 years with maintenance-free galvanization |
| Accessories | Climbing rungs, fall protection systems, cross-arms, and insulator brackets |
1. High-Strength Structural Steel Engineering
Constructed from premium high-tensile steel (Q345B/Q355B/Q420), this electric power steel monopole tower is designed to handle heavy mechanical loads. It features superior resistance to extreme wind pressures and seismic forces, ensuring the stability of high-voltage transmission lines in diverse geographical terrains.
2. Superior Hot-Dip Galvanized Corrosion Protection
The entire structure undergoes a specialized hot-dip galvanizing process in compliance with ISO 1461 and ASTM A123 standards. This creates a durable metallurgical bond with a coating thickness exceeding 86μm, providing a maintenance-free service life of 30–50 years even in high-humidity or industrial zones.

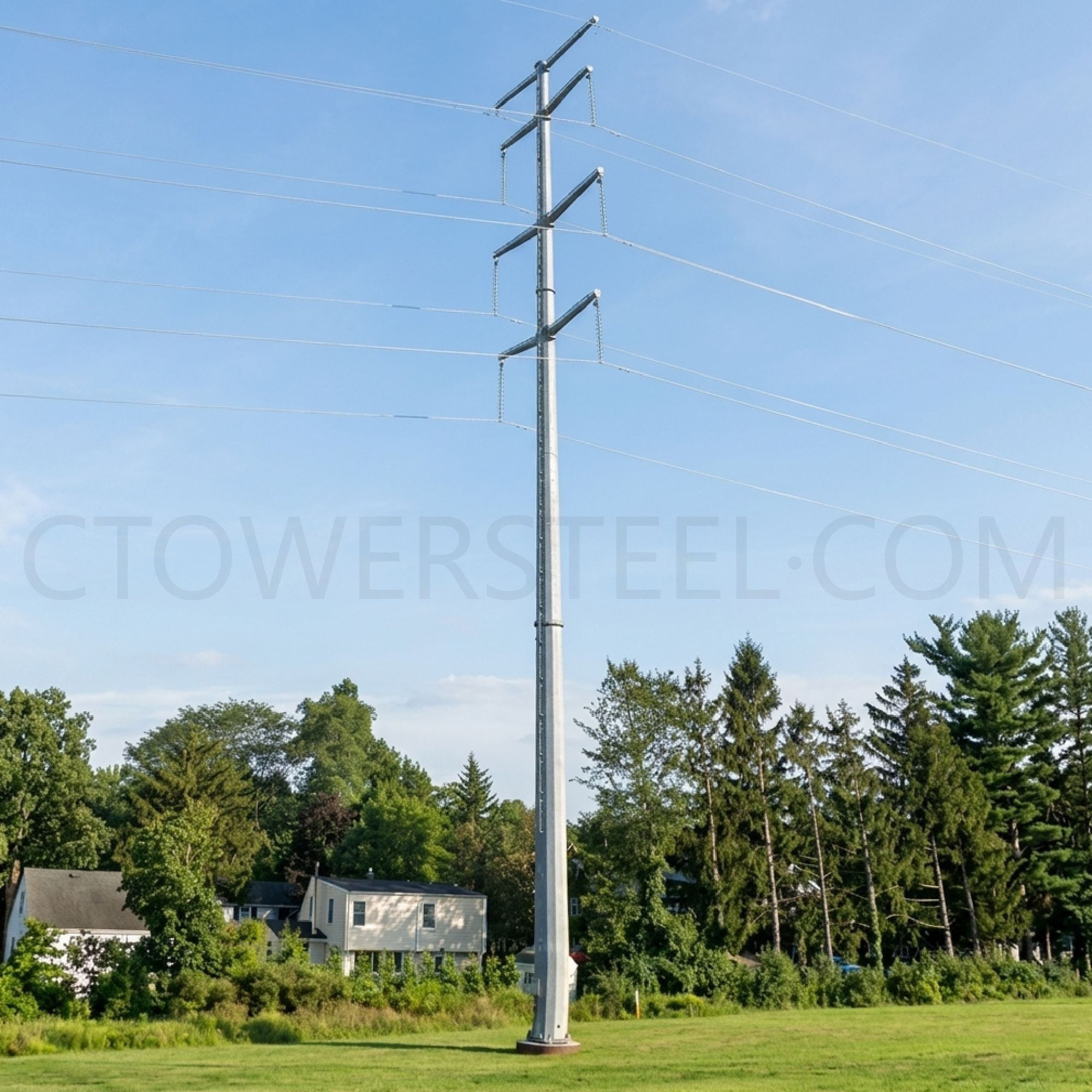

3. Space-Efficient Design for Urban Utility
This 30 meter tower monopole provides a streamlined, single-column footprint that requires significantly less ground space than traditional lattice towers. It is the ideal solution for narrow transmission corridors, urban infrastructure projects, and areas where land acquisition costs are a primary concern.
4. Precision Manufacturing and Easy Assembly
Utilizing advanced CNC cutting and automated submerged arc welding (AWS D1.1), each segment is engineered for a perfect fit. The slip-joint (overlap) or flange connection systems allow for rapid, safe on-site installation using standard hoisting equipment, reducing labor time and project overhead.
5. Global Standard Compliance and Quality Assurance
Our monopole towers are rigorously tested and certified to meet international engineering codes including ASCE 48-05, TIA/EIA-222, and GB/T 2694. Every shipment includes comprehensive material certificates and galvanization reports, ensuring full transparency and reliability for global power utility operators.
