| Type (Kind) | Single Tube Monopole Tower / Telecommunication Pole |
|---|---|
| Height | 15m – 60m (Fully customizable based on project requirements) |
| Surface Treatment | Hot-dip Galvanization (Standards: ISO 1461 / ASTM A123) |
| Hoisting Method | Crane hoisting with sectional overlapping or flange assembly |
| Material | High-strength Steel Q235B, Q355B, Q420, ASTM A572 GR50/GR65 |
Product Introduction
Engineering intelligence builds better towers. CLEVERTOWER® delivers safe, reliable, and cost-efficient tower solutions through proven engineering experience and rational structural design.
CT-C-30-M-03F01
Hot-dip Galvanized Q355B Steel 5G Telecom Monopole Tower for Mobile Cell Tower Antennas Support and Network Coverage
Product Details
| Custom Attribute | Specifications |
|---|---|

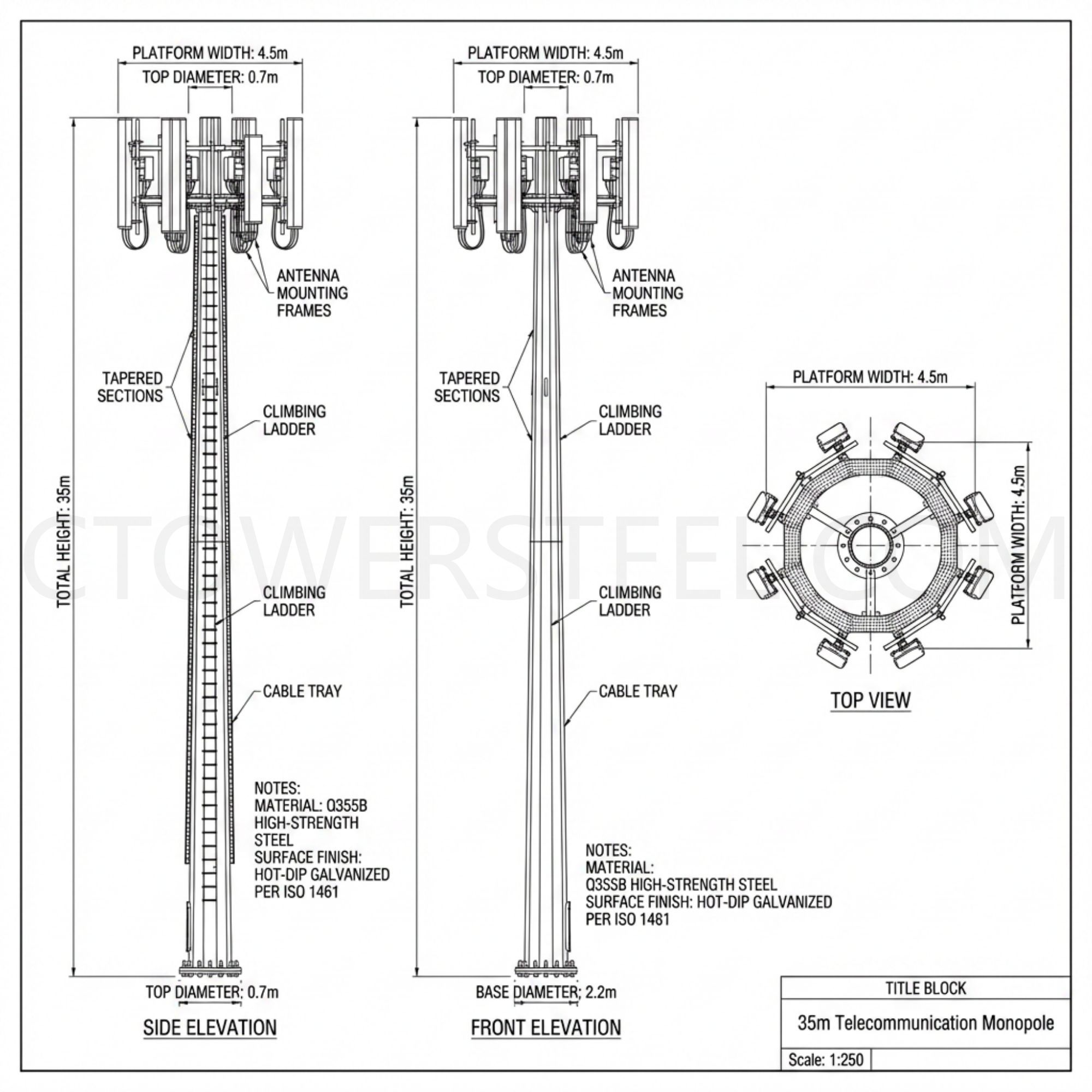

| Tower Type | Single Tube Monopole / Tapered Tubular Structure |
| Material | High-strength structural steel Q355B / ASTM A572 |
| Column Connection Method | Slip-joint (overlapping) or Flange connection |
| Safety & Reliability | Designed for wind speeds up to 160km/h; Earthquake resistance grade 8 |
| Design Standard | TIA/EIA-222-G, ANSI, or Eurocode standards |
| Antenna Capacity | Supports 3 to 12 panel antennas plus microwave dishes |
| Service Life | More than 50 years for structural integrity |
| Warranty | 20 years for hot-dip galvanized surface against rust |
| Appearance | Tapered Polygonal (12/16/18 sides) or Tapered Round |
| Application | Urban and rural 5G/4G/LTE mobile network expansion |
Advanced Wind and Seismic Resistance Engineering
Designed to withstand high wind loads up to 160km/h and certified for Grade 8 earthquake resistance, our monopole towers provide a stable platform for sensitive telecommunication equipment. The tapered tubular design minimizes wind resistance while maximizing structural integrity in both dense urban and open rural settings.
Multi-Platform Support for 5G Cell Tower Antennas

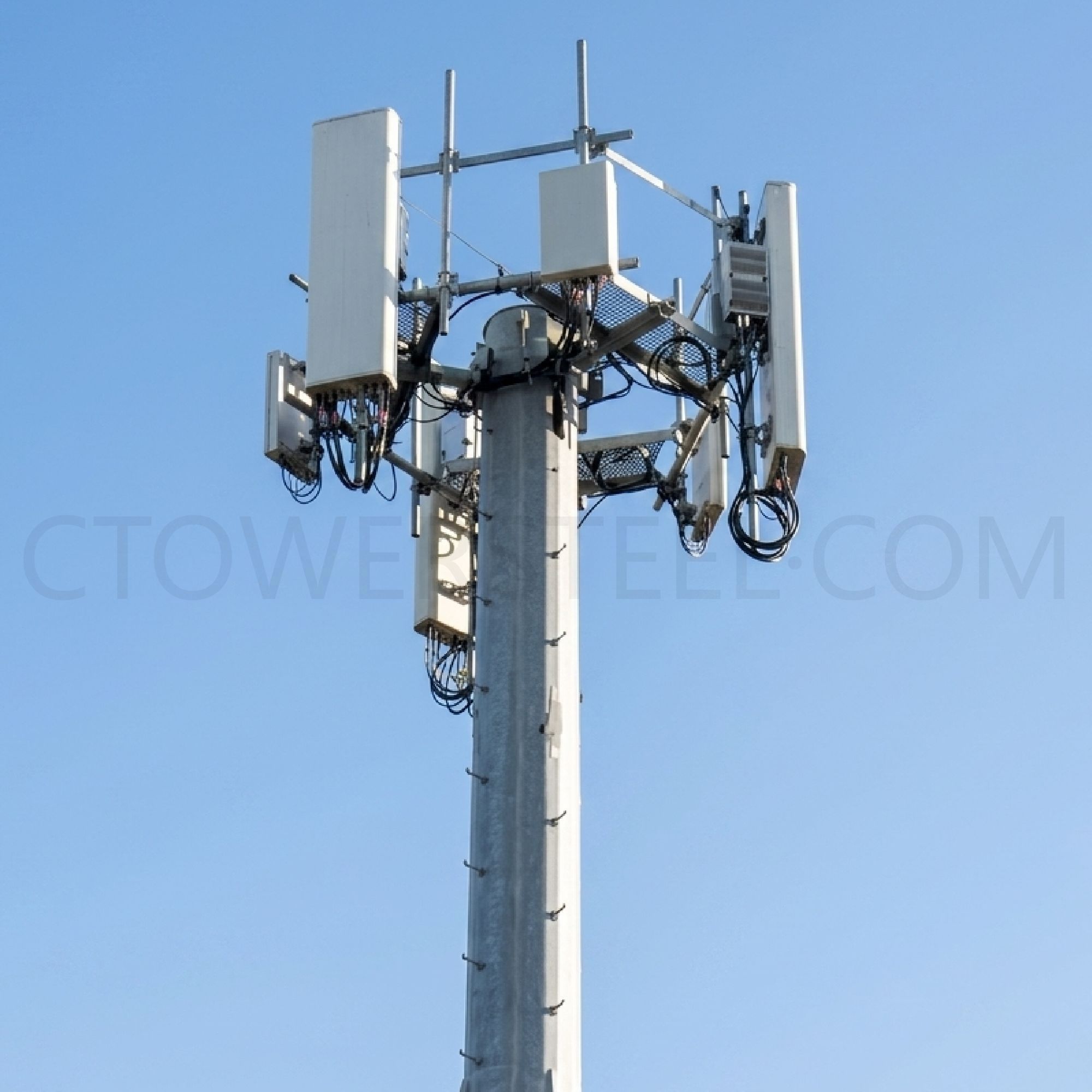

Optimized for the latest 5G network rollouts, the tower features a versatile mounting system capable of supporting 3 to 12 panel antennas alongside microwave dishes. The integrated internal cable routing system protects wiring from weather and vandalism, ensuring consistent signal quality and high-performance network coverage.
Space-Saving Footprint with Efficient Installation
The sleek monopole structure requires a significantly smaller footprint compared to traditional lattice towers, making it an ideal choice for restricted urban areas and private property sites. Utilizing precision-engineered slip-joints or flange connections, the tower sections can be rapidly assembled and deployed, reducing overall project timelines and labor costs.
Compliance with Global Telecommunication Standards
Every tower is manufactured in strict accordance with international standards including TIA/EIA-222-G, ANSI, and Eurocode. Our rigorous factory testing and quality control protocols ensure that each component meets global safety and reliability requirements, providing a secure and trusted infrastructure for mobile network operators worldwide.
