| Type (Kind) | Self-supporting 3-legged Lattice Tower |
|---|---|
| Height | 10m – 60m (Customizable based on site requirements) |
| Surface Treatment | Hot-dip Galvanization (min 85μm) according to ISO 1461 |
| Hoisting Method | Manual segment assembly or Crane installation |
| Application | Telecommunication, 5G signal transmission, WiFi, Microwave |
| Product name | 3-legged Lattice Communication Tower |
| Material | High-strength Structural Steel Q235B/Q355B |
| Column Connection Method: | Professional Flange or Splice Bolt Connection |
| Coating Standard | ASTM A123 / BS 729 Hot-dip Galvanized |
| Delivery State | Disassembled components for optimized container shipping |
Product Introduction
Engineering intelligence builds better towers. CLEVERTOWER® delivers safe, reliable, and cost-efficient tower solutions through proven engineering experience and rational structural design.
CT-C-50-L-06F01

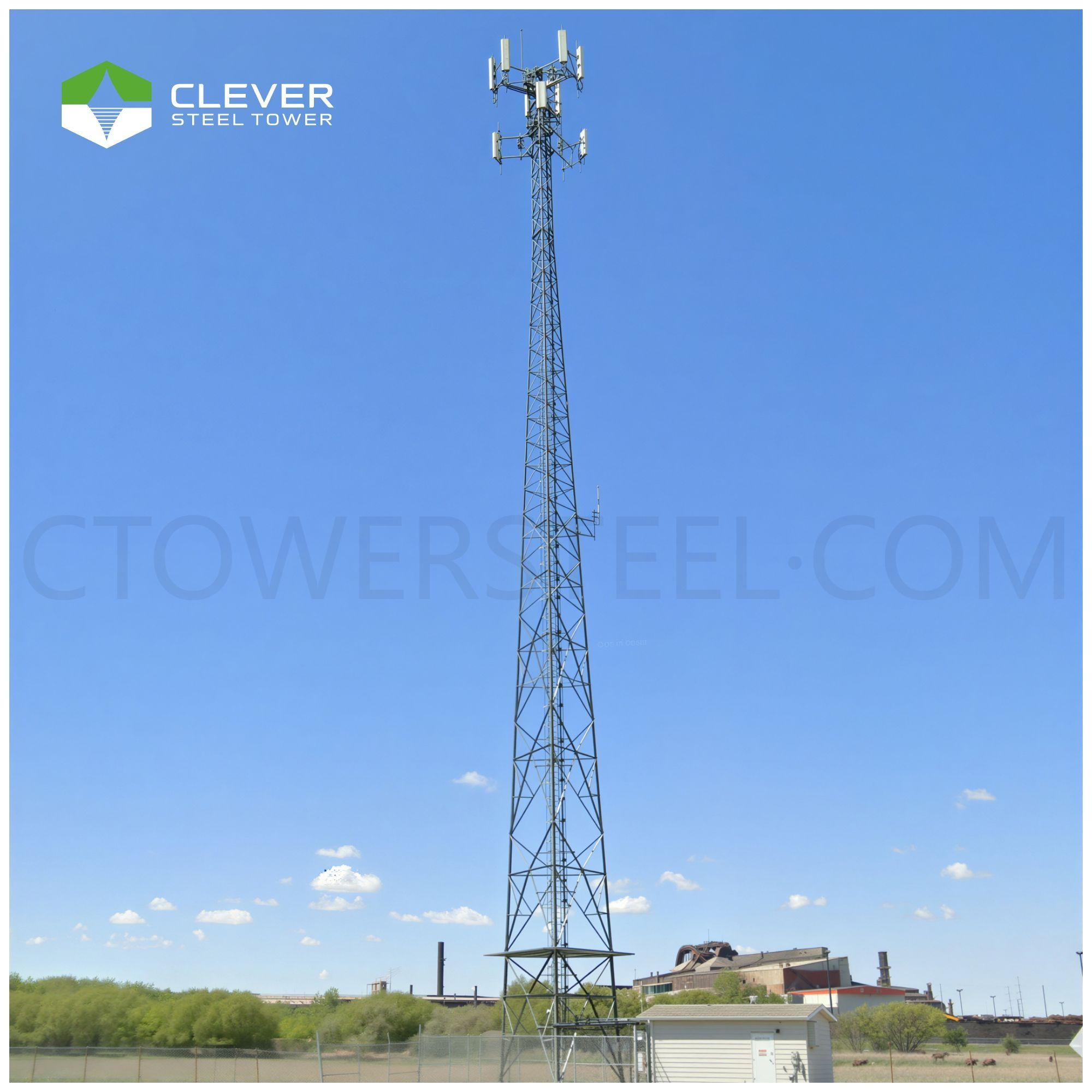

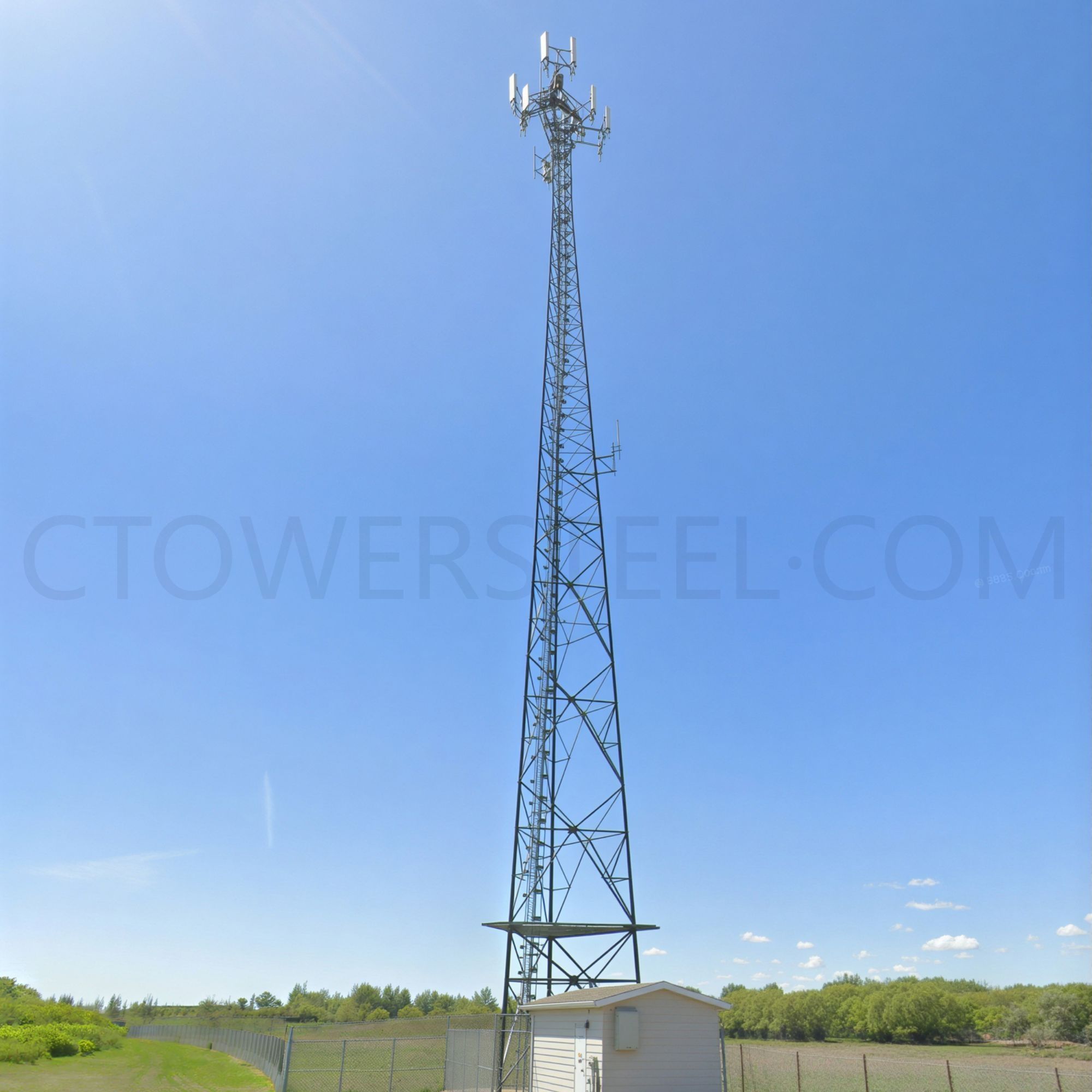

Galvanized Self-supporting 3-legged Lattice Steel Communication Tower for 5g cell tower and wireless network signal
Product Details
High-Strength Structural Integrity & Wind Resistance
Engineered with premium Q355B/Q235B structural steel, this 3-legged lattice tower features a triangular self-supporting geometry that provides superior torsional rigidity. It is specifically designed to withstand extreme environmental conditions, supporting wind speeds up to 160km/h to ensure 24/7 stability for critical 5G cell tower infrastructure.
Advanced Corrosion Protection with Hot-Dip Galvanizing
To ensure a service life of over 50 years, all steel components undergo a rigorous hot-dip galvanization process according to ISO 1461 standards. This protective zinc coating (minimum 85μm thickness) prevents rust and oxidation in humid, coastal, or industrial environments, significantly reducing long-term maintenance costs for network operators.
Optimized for 5G Cell Tower Antennas & Equipment

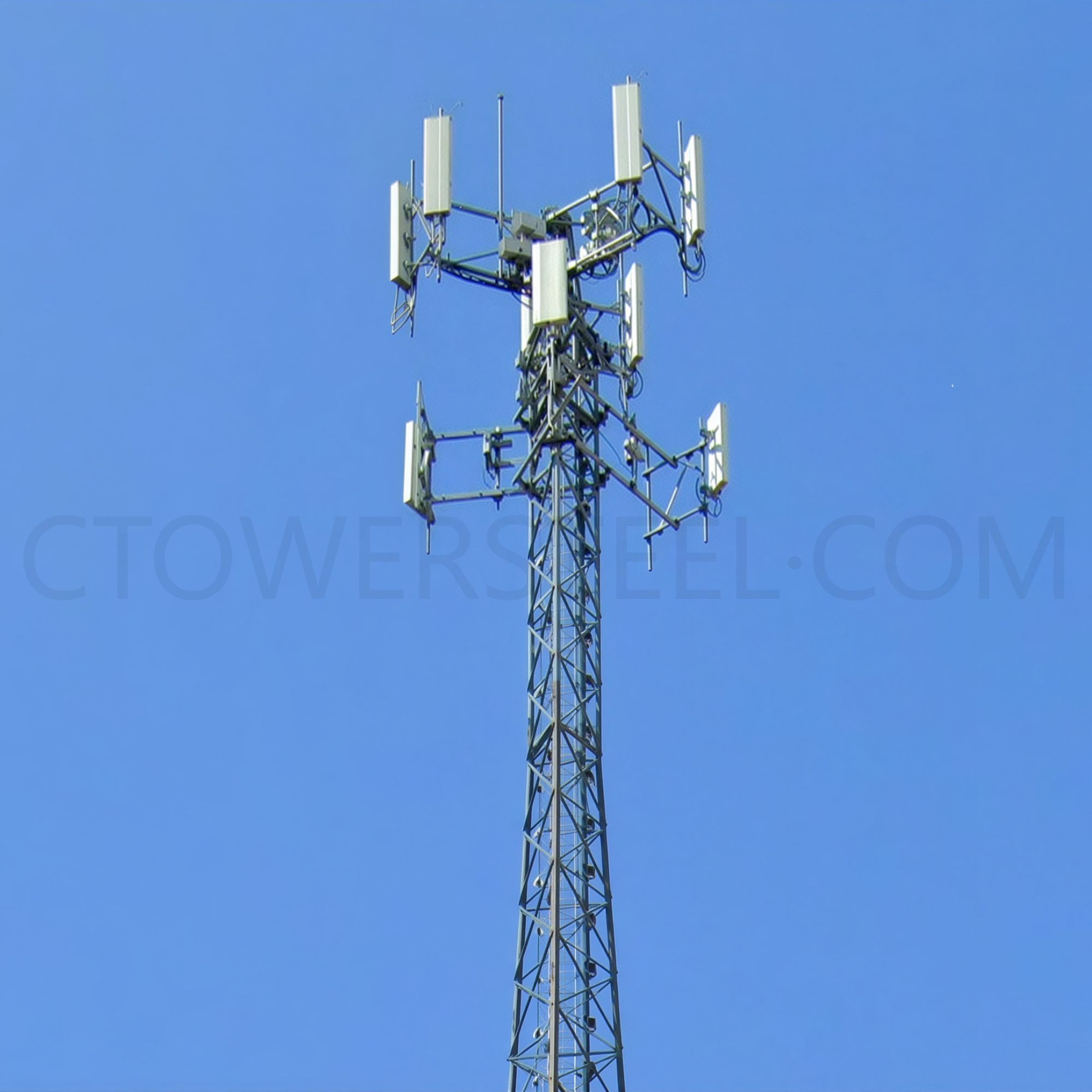

The tower structure is designed with versatile mounting platforms to accommodate multiple levels of cell tower antennas, microwave dishes, and RRU units. Its high load-bearing capacity and minimal sway make it the ideal solution for high-density 5G network rollouts and multi-operator co-location sites.
Modular Design for Easy Logistics & Rapid Deployment
Featuring a modular segment assembly with high-strength flange or splice bolt connections, the tower is optimized for international shipping in standard containers. This knock-down design allows for easier transportation to remote sites and enables rapid on-site installation using standard hoisting equipment or cranes.
Compliance with International Engineering Standards
Our manufacturing process adheres to strict quality management systems including ISO 9001:2015 and CE certifications. Every tower is designed in accordance with TIA/EIA-222-G or equivalent structural codes, providing global telecom providers with a reliable, safe, and professional-grade infrastructure solution.
